AN393 / MS20392-2 Clevis Pin (Cadmium)

Price range: $0.58 through $1.39

Falcon Field Delivery/Pickup/SHIP

Product Barcode

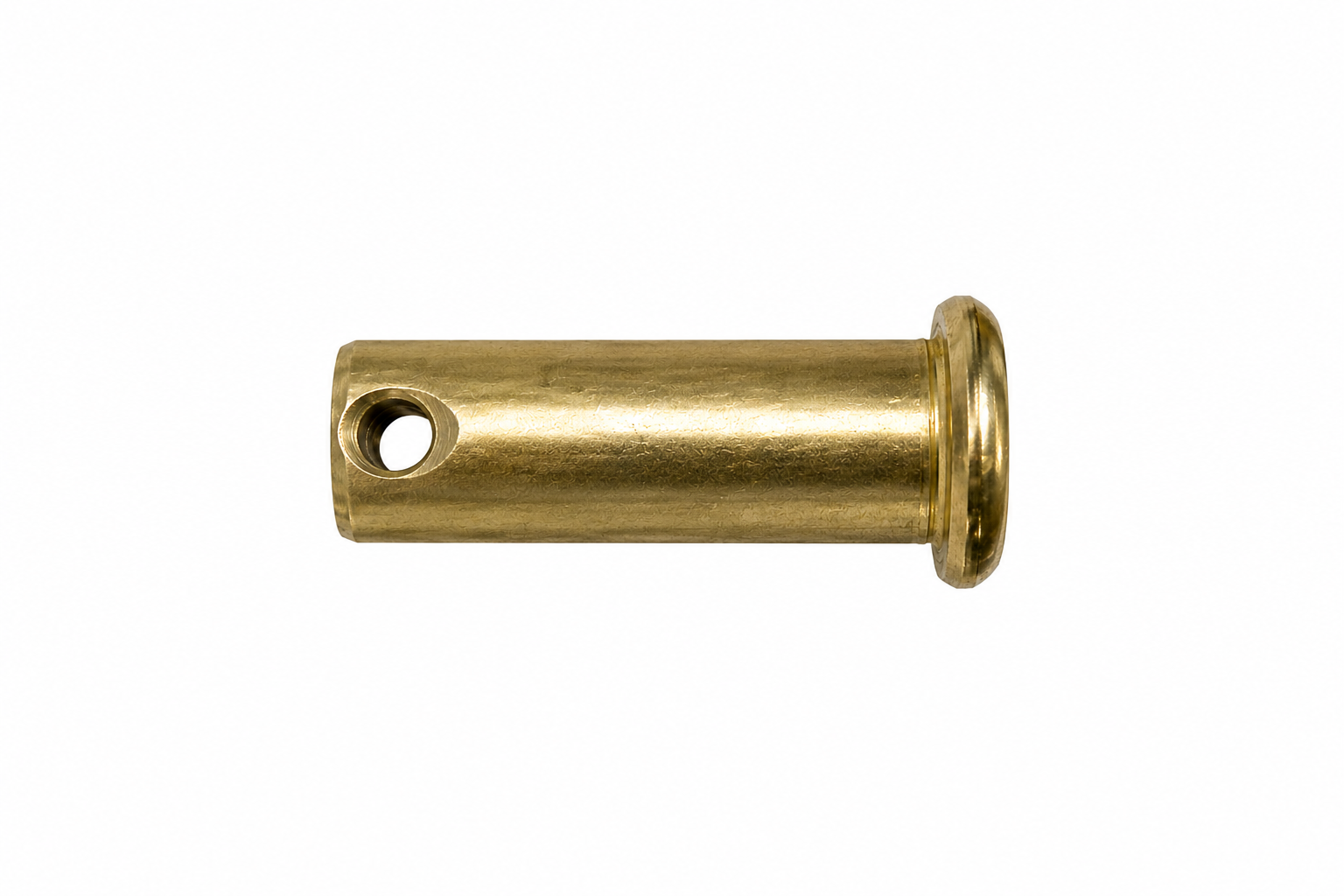

The AN393 Clevis Pin is a precision-machined aircraft hardware component designed for use in clevis joints, control linkages, bellcranks, and other applications requiring a secure pivot point. Manufactured to military specifications, AN393 clevis pins provide reliable performance in aviation maintenance, repair, and aircraft assembly.

The AN393 series features a 3/16-inch diameter shank and is directly interchangeable with the MS20392-2 series. Each pin includes a drilled hole for installation with a cotter pin, ensuring positive retention in service.

Available in multiple lengths, select the appropriate AN393 or MS20392 part number from the dropdown menu.

.

Specifications:

  • AN Series: AN393
  • MS Equivalent: MS20392-2 Series
  • Diameter: 3/16″
  • Material: Cadmium-plated steel
  • Head Style: Clevis pin head with cross-drilled shank
  • Sold Individually

.

Note: Always verify the correct part number and length for your aircraft using the applicable parts catalog or maintenance manual before installation.
