EarthX ETX680-24-TSO-HDB-KIT STC Installation Kit

$295.00

Falcon Field Delivery/Pickup/SHIP

In stock

Product Barcode

The EarthX ETX680-24-TSO-HDB-KIT is an STC installation kit designed to install an EarthX ETX680-24-TSO 24V lithium aircraft battery into the aircraft’s existing battery-box location on applicable certified aircraft. The kit provides the hardware necessary to properly secure the smaller, lightweight EarthX battery and integrate its venting and battery-status indication into the approved aircraft installation.

This kit is generally required for the initial conversion from the existing battery installation to the ETX680-24-TSO. Once the aircraft has been properly converted under the applicable EarthX STC, future battery replacement normally requires only the replacement ETX680-24-TSO battery rather than another installation kit. The battery is sold separately.

The HDB installation uses an ETX680-24 battery hold-down bracket, 24V battery-status indicator LED, high-temperature vent tubing, fittings and clamps to adapt the EarthX battery to the aircraft installation. EarthX installation instructions specify connection of the battery vent to the aircraft’s existing vent system and installation of the supplied battery fault/status indicator.

.

Features:

  • STC installation kit for the ETX680-24-TSO
  • Designed for installation in the aircraft’s existing battery-box location
  • Provides dedicated EarthX battery hold-down hardware
  • Includes 24V MIL-Spec battery status/fault LED
  • Includes high-temperature battery vent tubing and associated fittings
  • Interfaces the EarthX battery vent with the aircraft’s existing vent system
  • Required only for the initial conversion when applicable
  • Intended for use with approved certified-aircraft installations
  • ETX680-24-TSO battery sold separately
  • Kits are non-refundable and non-returnable

.

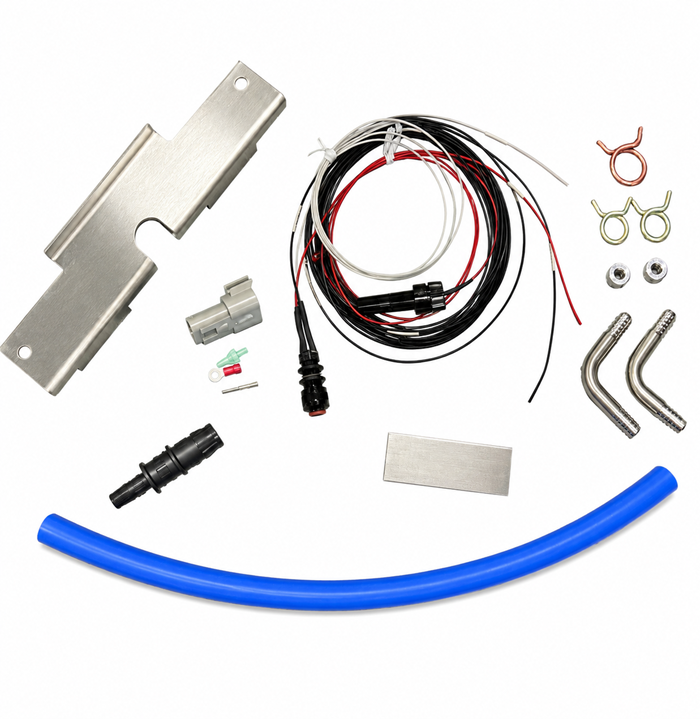

Typical Installation Kit Components:

  • ETX680-24-HDB battery hold-down bracket
  • 11MM24 24V MIL-Spec LED
  • High-temperature 3/8″ ID vent tubing
  • 90° 3/8″ barbed tube fittings
  • Vent-tube reducer fitting
  • Spring clamps
  • Additional aircraft-specific tubing, spacers, placards or installation hardware where required

.

Note: Exact kit contents can vary according to the applicable aircraft installation. Always verify the aircraft make, model, serial number and current EarthX STC/AML documentation before ordering or installation.
